Problem to tex

A latex problem can be easily created with parameter inputs which are randomly chosen from a set of values. The solution is automatically generated for the new parameters and SI-prefixes are done automatically.

An example basic02.prb file is the following:

\runParam{V_1 = [2, 3, 4, 5]# \paramUnits{V}}
\runParam{R_1 = [6, 7, 8, 9]# \paramUnits{k \Omega}}
\question Given \val={V_1} and \val={R_1}, find the current $I_R = V_1/R_1$\\
\textbf{Solution}\\
\run(){I_R=V_1/R_1}\\
\hlite{\val={I_R}}

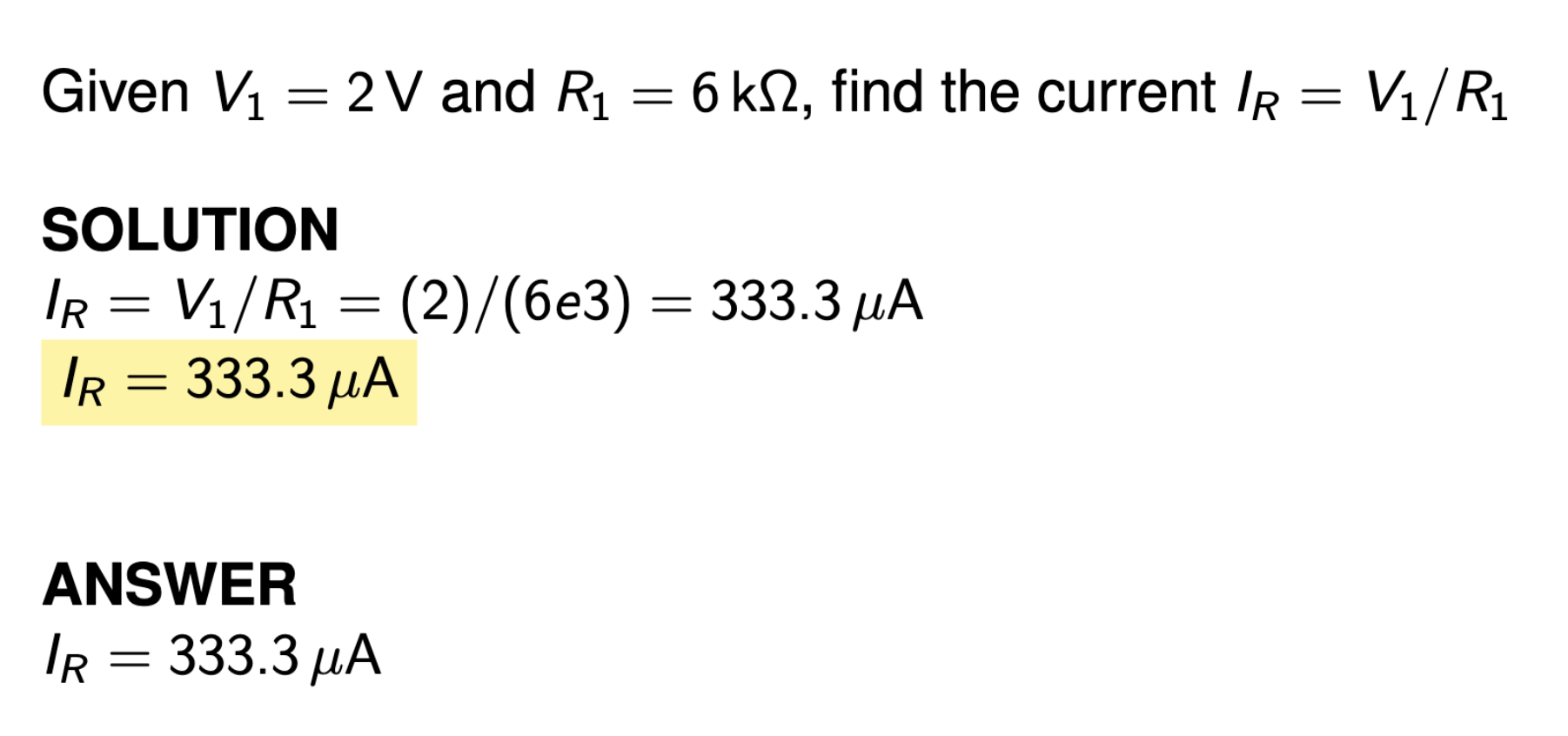

Running this .prb file through latex, the following pdf is generated:


LTSpice figures can be included in the problems with varying parameters in LTSpice figures

For more info, see Documentation

Examples

The above basic example can be found within the zip file: testBasic.zip
- The pdf for this basic example is here: basic.pdf

A full final exam example can be found within the zip file: testComplete.zip
This exam has many schematics, is fully parameterized and the solution is automatically updated as the parameters are changed. Note that the graph for question 6 is also automatically updated by using tikzpicture within Latex.
- The pdf for this exam is here: ece331_final_2019.pdf
